Victron battery management status codes

Posted by jpluimers on 2025/05/12

From [Wayback/Archive] ESS design and installation manual: 6. Controlling depth of discharge:

6.5. ESS Battery Status Reason Code Numbers

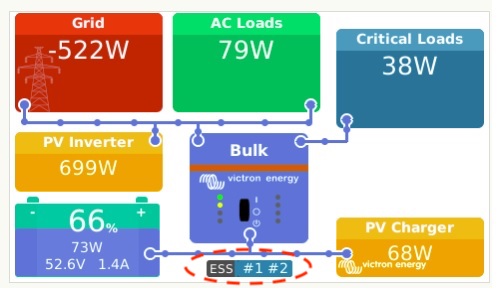

In addition to the charger states (Bulk/Absorption/Float), there are additional Discharging and Sustain codes that provide at-a-glance information on the Pages Overview of GX display.


The key for these codes is:

  • #1: SOC is low
  • #2: BatteryLife is active
  • #3: BMS disabled charging
  • #4: BMS disabled discharge
  • #5: Slow Charge in progress (part of BatteryLife, see above)
  • #6: User configured a charge limit of zero.
  • #7: User configured a discharge limit of zero.

Related: [Wayback/Archive] Lithium Battery Smart Manual: 5. Operation

--jeroen
