Archive for May 6th, 2021

VMware ESXi: working around “[Errno 28] No space left on device” when updating (especially when booting from USB-stick)

Posted by jpluimers on 2021/05/06

A while ago, I had this error while upgrading an ESXi 6.7 system:

# esxcli system maintenanceMode get
Enabled
# esxcli software profile update -p ESXi-6.7.0-20210304001-standard -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-
index.xml
 [InstallationError]
 [Errno 28] No space left on device
       vibs = VMware_locker_tools-light_11.2.5.17337674-17700514
 Please refer to the log file for more details.

This seems to be kind of a known issue, especially on systems that boot from USB sticks (see [Archive.is] “ESXi” “[Errno 28] No space left on device” – Google Search). Despites these sticks having gotten larger over time, VMware uses very little storage on them, so runs out of storage spice while processing installs from the depot.

This is kind of disappointing, and with the ever growing updates, the only workaround is to download an offline bundle, then install it.

Below I will explain how to get the offline bundle, as it involves a few more steps all aimed at this simple installation of the offline bundle file:

# esxcli system maintenanceMode get
Enabled
# esxcli software profile update -p ESXi-6.7.0-20210304001-standard -d /vmfs/volumes/EVO860_500GB/OfflineBundles/ESXi670-202103001.zip
Update Result
   Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
   Reboot Required: true
   VIBs Installed: VMW_bootbank_ixgben_1.7.1.16-2vmw.670.3.104.16075168, VMW_bootbank_lpfc_11.4.33.26-14vmw.670.3.104.16075168, VMW_bootbank_net-e1000_8.0.3.1-5vmw.670.3.112.16701467, VMW_bootbank_net-vmxnet3_1.1.3.0-3vmw.670.3.104.16075168, VMW_bootbank_nfnic_4.0.0.44-0vmw.670.3.104.16075168, VMW_bootbank_ntg3_4.1.5.0-0vmw.670.3.116.16713306, VMW_bootbank_nvme_1.2.2.28-4vmw.670.3.132.17167734, VMW_bootbank_qfle3f_1.0.25.0.2-15vmw.670.3.104.16075168, VMW_bootbank_sfvmk_1.0.0.1003-7vmw.670.3.104.16075168, VMW_bootbank_vmkusb_0.1-1vmw.670.3.143.17700523, VMW_bootbank_vmw-ahci_2.0.7-2vmw.670.3.143.17700523, VMware_bootbank_cpu-microcode_6.7.0-3.139.17700514, VMware_bootbank_elx-esx-libelxima.so_11.4.1184.2-3.89.15160138, VMware_bootbank_esx-base_6.7.0-3.143.17700523, VMware_bootbank_esx-ui_1.33.7-15803439, VMware_bootbank_esx-update_6.7.0-3.143.17700523, VMware_bootbank_native-misc-drivers_6.7.0-3.89.15160138, VMware_bootbank_vmware-esx-esxcli-nvme-plugin_1.2.0.36-2vmw.670.3.116.16713306, VMware_bootbank_vsan_6.7.0-3.143.17661912, VMware_bootbank_vsanhealth_6.7.0-3.143.17665851, VMware_locker_tools-light_11.2.5.17337674-17700514
   VIBs Removed: VMW_bootbank_ixgben_1.7.1.16-1vmw.670.3.73.14320388, VMW_bootbank_lpfc_11.4.33.25-14vmw.670.3.73.14320388, VMW_bootbank_net-e1000_8.0.3.1-5vmw.670.0.0.8169922, VMW_bootbank_net-vmxnet3_1.1.3.0-3vmw.670.2.48.13006603, VMW_bootbank_nfnic_4.0.0.29-0vmw.670.3.73.14320388, VMW_bootbank_ntg3_4.1.3.2-1vmw.670.1.28.10302608, VMW_bootbank_nvme_1.2.2.28-1vmw.670.3.73.14320388, VMW_bootbank_qfle3f_1.0.25.0.2-14vmw.670.0.0.8169922, VMW_bootbank_sfvmk_1.0.0.1003-6vmw.670.3.73.14320388, VMW_bootbank_vmkusb_0.1-1vmw.670.2.48.13006603, VMW_bootbank_vmw-ahci_1.2.8-1vmw.670.3.73.14320388, VMware_bootbank_cpu-microcode_6.7.0-2.69.14141615, VMware_bootbank_elx-esx-libelxima.so_11.4.1184.1-2.48.13006603, VMware_bootbank_esx-base_6.7.0-3.73.14320388, VMware_bootbank_esx-ui_1.33.4-14093553, VMware_bootbank_esx-update_6.7.0-3.73.14320388, VMware_bootbank_native-misc-drivers_6.7.0-2.48.13006603, VMware_bootbank_vmware-esx-esxcli-nvme-plugin_1.2.0.36-2.48.13006603, VMware_bootbank_vsan_6.7.0-3.73.14263135, VMware_bootbank_vsanhealth_6.7.0-3.73.14263064, VMware_locker_tools-light_10.3.10.12406962-14141615
   VIBs Skipped: VMW_bootbank_ata-libata-92_3.00.9.2-16vmw.670.0.0.8169922, VMW_bootbank_ata-pata-amd_0.3.10-3vmw.670.0.0.8169922, VMW_bootbank_ata-pata-atiixp_0.4.6-4vmw.670.0.0.8169922, VMW_bootbank_ata-pata-cmd64x_0.2.5-3vmw.670.0.0.8169922, VMW_bootbank_ata-pata-hpt3x2n_0.3.4-3vmw.670.0.0.8169922, VMW_bootbank_ata-pata-pdc2027x_1.0-3vmw.670.0.0.8169922, VMW_bootbank_ata-pata-serverworks_0.4.3-3vmw.670.0.0.8169922, VMW_bootbank_ata-pata-sil680_0.4.8-3vmw.670.0.0.8169922, VMW_bootbank_ata-pata-via_0.3.3-2vmw.670.0.0.8169922, VMW_bootbank_block-cciss_3.6.14-10vmw.670.0.0.8169922, VMW_bootbank_bnxtnet_20.6.101.7-24vmw.670.3.73.14320388, VMW_bootbank_bnxtroce_20.6.101.0-20vmw.670.1.28.10302608, VMW_bootbank_brcmfcoe_11.4.1078.25-14vmw.670.3.73.14320388, VMW_bootbank_char-random_1.0-3vmw.670.0.0.8169922, VMW_bootbank_ehci-ehci-hcd_1.0-4vmw.670.0.0.8169922, VMW_bootbank_elxiscsi_11.4.1174.0-2vmw.670.0.0.8169922, VMW_bootbank_elxnet_11.4.1097.0-5vmw.670.3.73.14320388, VMW_bootbank_hid-hid_1.0-3vmw.670.0.0.8169922, VMW_bootbank_i40en_1.8.1.9-2vmw.670.3.73.14320388, VMW_bootbank_iavmd_1.2.0.1011-2vmw.670.0.0.8169922, VMW_bootbank_igbn_0.1.1.0-5vmw.670.3.73.14320388, VMW_bootbank_ima-qla4xxx_2.02.18-1vmw.670.0.0.8169922, VMW_bootbank_ipmi-ipmi-devintf_39.1-5vmw.670.1.28.10302608, VMW_bootbank_ipmi-ipmi-msghandler_39.1-5vmw.670.1.28.10302608, VMW_bootbank_ipmi-ipmi-si-drv_39.1-5vmw.670.1.28.10302608, VMW_bootbank_iser_1.0.0.0-1vmw.670.1.28.10302608, VMW_bootbank_lpnic_11.4.59.0-1vmw.670.0.0.8169922, VMW_bootbank_lsi-mr3_7.708.07.00-3vmw.670.3.73.14320388, VMW_bootbank_lsi-msgpt2_20.00.06.00-2vmw.670.3.73.14320388, VMW_bootbank_lsi-msgpt35_09.00.00.00-5vmw.670.3.73.14320388, VMW_bootbank_lsi-msgpt3_17.00.02.00-1vmw.670.3.73.14320388, VMW_bootbank_misc-cnic-register_1.78.75.v60.7-1vmw.670.0.0.8169922, VMW_bootbank_misc-drivers_6.7.0-2.48.13006603, VMW_bootbank_mtip32xx-native_3.9.8-1vmw.670.1.28.10302608, VMW_bootbank_ne1000_0.8.4-2vmw.670.2.48.13006603, VMW_bootbank_nenic_1.0.29.0-1vmw.670.3.73.14320388, VMW_bootbank_net-bnx2_2.2.4f.v60.10-2vmw.670.0.0.8169922, VMW_bootbank_net-bnx2x_1.78.80.v60.12-2vmw.670.0.0.8169922, VMW_bootbank_net-cdc-ether_1.0-3vmw.670.0.0.8169922, VMW_bootbank_net-cnic_1.78.76.v60.13-2vmw.670.0.0.8169922, VMW_bootbank_net-e1000e_3.2.2.1-2vmw.670.0.0.8169922, VMW_bootbank_net-enic_2.1.2.38-2vmw.670.0.0.8169922, VMW_bootbank_net-fcoe_1.0.29.9.3-7vmw.670.0.0.8169922, VMW_bootbank_net-forcedeth_0.61-2vmw.670.0.0.8169922, VMW_bootbank_net-igb_5.0.5.1.1-5vmw.670.0.0.8169922, VMW_bootbank_net-ixgbe_3.7.13.7.14iov-20vmw.670.0.0.8169922, VMW_bootbank_net-libfcoe-92_1.0.24.9.4-8vmw.670.0.0.8169922, VMW_bootbank_net-mlx4-core_1.9.7.0-1vmw.670.0.0.8169922, VMW_bootbank_net-mlx4-en_1.9.7.0-1vmw.670.0.0.8169922, VMW_bootbank_net-nx-nic_5.0.621-5vmw.670.0.0.8169922, VMW_bootbank_net-tg3_3.131d.v60.4-2vmw.670.0.0.8169922, VMW_bootbank_net-usbnet_1.0-3vmw.670.0.0.8169922, VMW_bootbank_nhpsa_2.0.22-3vmw.670.1.28.10302608, VMW_bootbank_nmlx4-core_3.17.13.1-1vmw.670.2.48.13006603, VMW_bootbank_nmlx4-en_3.17.13.1-1vmw.670.2.48.13006603, VMW_bootbank_nmlx4-rdma_3.17.13.1-1vmw.670.2.48.13006603, VMW_bootbank_nmlx5-core_4.17.13.1-1vmw.670.3.73.14320388, VMW_bootbank_nmlx5-rdma_4.17.13.1-1vmw.670.2.48.13006603, VMW_bootbank_nvmxnet3-ens_2.0.0.21-1vmw.670.0.0.8169922, VMW_bootbank_nvmxnet3_2.0.0.29-1vmw.670.1.28.10302608, VMW_bootbank_ohci-usb-ohci_1.0-3vmw.670.0.0.8169922, VMW_bootbank_pvscsi_0.1-2vmw.670.0.0.8169922, VMW_bootbank_qcnic_1.0.2.0.4-1vmw.670.0.0.8169922, VMW_bootbank_qedentv_2.0.6.4-10vmw.670.1.28.10302608, VMW_bootbank_qfle3_1.0.50.11-9vmw.670.0.0.8169922, VMW_bootbank_qfle3i_1.0.2.3.9-3vmw.670.0.0.8169922, VMW_bootbank_qflge_1.1.0.11-1vmw.670.0.0.8169922, VMW_bootbank_sata-ahci_3.0-26vmw.670.0.0.8169922, VMW_bootbank_sata-ata-piix_2.12-10vmw.670.0.0.8169922, VMW_bootbank_sata-sata-nv_3.5-4vmw.670.0.0.8169922, VMW_bootbank_sata-sata-promise_2.12-3vmw.670.0.0.8169922, VMW_bootbank_sata-sata-sil24_1.1-1vmw.670.0.0.8169922, VMW_bootbank_sata-sata-sil_2.3-4vmw.670.0.0.8169922, VMW_bootbank_sata-sata-svw_2.3-3vmw.670.0.0.8169922, VMW_bootbank_scsi-aacraid_1.1.5.1-9vmw.670.0.0.8169922, VMW_bootbank_scsi-adp94xx_1.0.8.12-6vmw.670.0.0.8169922, VMW_bootbank_scsi-aic79xx_3.1-6vmw.670.0.0.8169922, VMW_bootbank_scsi-bnx2fc_1.78.78.v60.8-1vmw.670.0.0.8169922, VMW_bootbank_scsi-bnx2i_2.78.76.v60.8-1vmw.670.0.0.8169922, VMW_bootbank_scsi-fnic_1.5.0.45-3vmw.670.0.0.8169922, VMW_bootbank_scsi-hpsa_6.0.0.84-3vmw.670.0.0.8169922, VMW_bootbank_scsi-ips_7.12.05-4vmw.670.0.0.8169922, VMW_bootbank_scsi-iscsi-linux-92_1.0.0.2-3vmw.670.0.0.8169922, VMW_bootbank_scsi-libfc-92_1.0.40.9.3-5vmw.670.0.0.8169922, VMW_bootbank_scsi-megaraid-mbox_2.20.5.1-6vmw.670.0.0.8169922, VMW_bootbank_scsi-megaraid-sas_6.603.55.00-2vmw.670.0.0.8169922, VMW_bootbank_scsi-megaraid2_2.00.4-9vmw.670.0.0.8169922, VMW_bootbank_scsi-mpt2sas_19.00.00.00-2vmw.670.0.0.8169922, VMW_bootbank_scsi-mptsas_4.23.01.00-10vmw.670.0.0.8169922, VMW_bootbank_scsi-mptspi_4.23.01.00-10vmw.670.0.0.8169922, VMW_bootbank_scsi-qla4xxx_5.01.03.2-7vmw.670.0.0.8169922, VMW_bootbank_shim-iscsi-linux-9-2-1-0_6.7.0-0.0.8169922, VMW_bootbank_shim-iscsi-linux-9-2-2-0_6.7.0-0.0.8169922, VMW_bootbank_shim-libata-9-2-1-0_6.7.0-0.0.8169922, VMW_bootbank_shim-libata-9-2-2-0_6.7.0-0.0.8169922, VMW_bootbank_shim-libfc-9-2-1-0_6.7.0-0.0.8169922, VMW_bootbank_shim-libfc-9-2-2-0_6.7.0-0.0.8169922, VMW_bootbank_shim-libfcoe-9-2-1-0_6.7.0-0.0.8169922, VMW_bootbank_shim-libfcoe-9-2-2-0_6.7.0-0.0.8169922, VMW_bootbank_shim-vmklinux-9-2-1-0_6.7.0-0.0.8169922, VMW_bootbank_shim-vmklinux-9-2-2-0_6.7.0-0.0.8169922, VMW_bootbank_shim-vmklinux-9-2-3-0_6.7.0-0.0.8169922, VMW_bootbank_smartpqi_1.0.1.553-28vmw.670.3.73.14320388, VMW_bootbank_uhci-usb-uhci_1.0-3vmw.670.0.0.8169922, VMW_bootbank_usb-storage-usb-storage_1.0-3vmw.670.0.0.8169922, VMW_bootbank_usbcore-usb_1.0-3vmw.670.0.0.8169922, VMW_bootbank_vmkata_0.1-1vmw.670.0.0.8169922, VMW_bootbank_vmkfcoe_1.0.0.1-1vmw.670.1.28.10302608, VMW_bootbank_vmkplexer-vmkplexer_6.7.0-0.0.8169922, VMW_bootbank_xhci-xhci_1.0-3vmw.670.0.0.8169922, VMware_bootbank_esx-dvfilter-generic-fastpath_6.7.0-0.0.8169922, VMware_bootbank_esx-xserver_6.7.0-3.73.14320388, VMware_bootbank_lsu-hp-hpsa-plugin_2.0.0-16vmw.670.1.28.10302608, VMware_bootbank_lsu-intel-vmd-plugin_1.0.0-2vmw.670.1.28.10302608, VMware_bootbank_lsu-lsi-drivers-plugin_1.0.0-1vmw.670.2.48.13006603, VMware_bootbank_lsu-lsi-lsi-mr3-plugin_1.0.0-13vmw.670.1.28.10302608, VMware_bootbank_lsu-lsi-lsi-msgpt3-plugin_1.0.0-9vmw.670.2.48.13006603, VMware_bootbank_lsu-lsi-megaraid-sas-plugin_1.0.0-9vmw.670.0.0.8169922, VMware_bootbank_lsu-lsi-mpt2sas-plugin_2.0.0-7vmw.670.0.0.8169922, VMware_bootbank_lsu-smartpqi-plugin_1.0.0-3vmw.670.1.28.10302608, VMware_bootbank_qlnativefc_3.1.8.0-5vmw.670.3.73.14320388, VMware_bootbank_rste_2.0.2.0088-7vmw.670.0.0.8169922
# reboot

Note that I always perform a  esxcli system maintenanceMode get in order to verify the system is indeed in maintenance mode.

Steps to get the offline bundle

0. determining the profile

Actually there is a pre-step: checking which update profile is needed. I use the VMware Patch Tracker from VFrontDe, as you can subscribe through RSS (by ESXi version) Twitter (all versions) for that.

For ESXi 7, I use moved from the [Wayback] regular ESXi 6.7 patch RSS feed to the Feedly ESXi 6.7 patch RSS feed (which integrates in my daily news reading) of [Wayback] VMware ESXi 6.7 Patch History:

Keep track of VMware ESXi patches, subscribe by [Archive.is] RSS and [Archive.is] Twitter! – Brought to you by @VFrontDe

For the current (as of writing) update, it shows two out of four profiles:

  1. Imageprofile ESXi-6.7.0-20210304001-standard (Build 17700523) … (For more information see [Wayback] Release Notes.)
  2. Imageprofile ESXi-6.7.0-20210301001s-standard (Build 17700514) … (For more information see [Wayback] Release Notes.)

There can be two more “...-no-tools” profiles as described by [Wayback] VMware ESXi Image Profiles | virten.net

Example – ESXi 5.5 Patch 2 contains 4 Image Profiles:
  1. ESXi-5.5.0-20140704001-standard – Contains all patches
  2. ESXi-5.5.0-20140704001-no-tools – Contains all patches but no VMware Tools
  3. ESXi-5.5.0-20140701001s-standard – Contains security patches only
  4. ESXi-5.5.0-20140701001s-no-tools – Contains security patches only and no VMware Tools

…

vSphere ESXi 6.7 Image Profiles
Image Profile ESX Build Release Date
ESXi-6.7.0-20210304001-standard 17700523 2021-03-18
ESXi-6.7.0-20210304001-no-tools 17700523 2021-03-18
ESXi-6.7.0-20210301001s-standard 17700514 2021-03-18
ESXi-6.7.0-20210301001s-no-tools 17700514 2021-03-18

Given that I my environment as complete as possible (the original ESXi install contains everything, so I do want to include the “VMware Tools“, and update the full software, nut just security issues), I opt for “###...-standard” and not for “###s...-standard“.

1. determine the download

The page [Wayback] VMware ESXi 6.7 Patch History (and similar pages for other ESXi versions) contains a tiny link in the upper left hand side named “[MyVMware Patch Download]” (I saved it in the Wayback machine) which brings you a patch search page on the VMware patch site.

The big drawback is that you need to be signed on into yout VMware account to actually see this page. The VMware account validation is implemented in a “corporate” way, so often does not work (especially when you need it, which for me often is on weekends, a period in the week that corporates seem to ar less monitor their systems than during USA work-day hours). I might sound cynical, but this set me back quite some time even trying to get an ESXi 7 license.

Here are some screenshots:

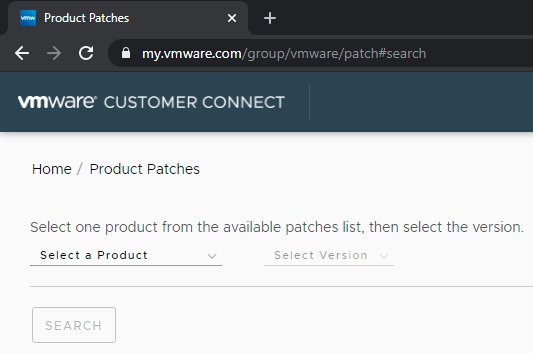

VMware HomeP/roduct Patches

VMware Home/Product Patches

The site is so corporate, that when your screen is not wide enough, the selection box is drawn outside your screen area:

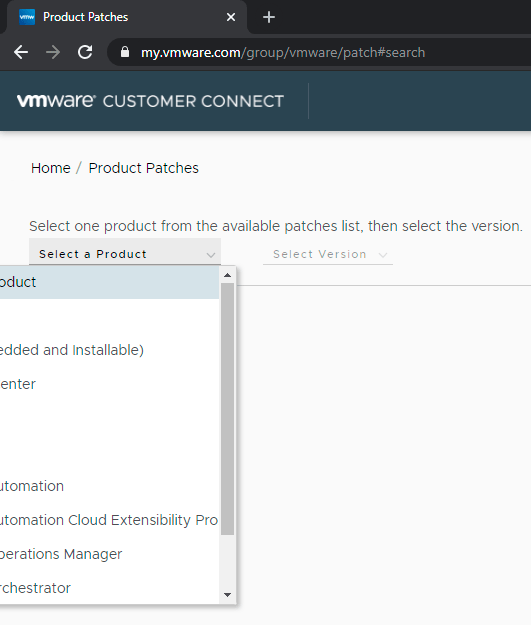

VMware being very corporate: drawing selection box outside the screen area.

VMware being very corporate: drawing selection box outside the screen area.

Anyway the one ending in “and Installable” is the one we want, cutting off the other part (you are a corporate or you aren’t, right?):

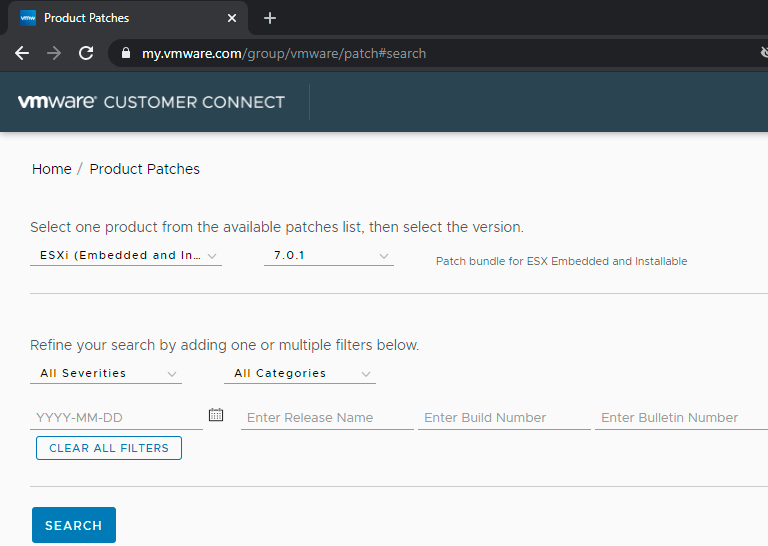

"ESXi (Embedded and ..." is cut off as the layout has been designed to cut off either way.

“ESXi (Embedded and …” is cut off as the layout has been designed to cut off either way.

So for ESXi 6.7.0, when writing this, the offline bundles were these:

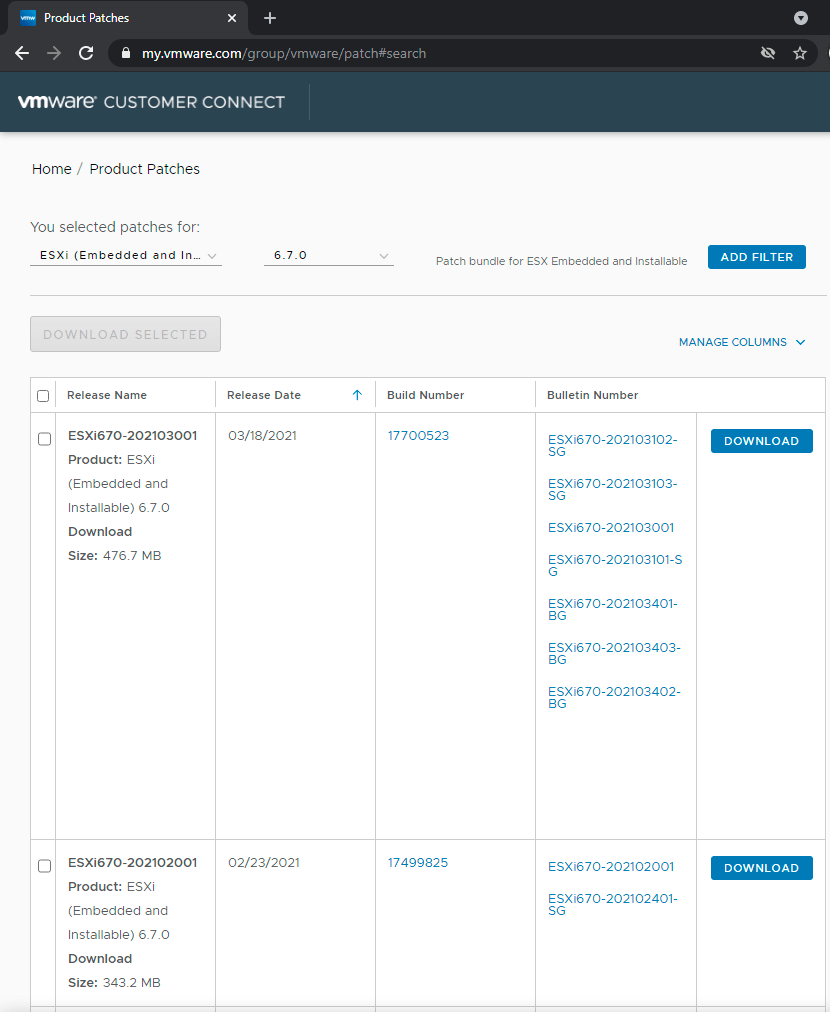

ESXi 6.7.0 offline bundles

ESXi 6.7.0 offline bundles (unlike the YYYYMM### release name and YYYYMM### bulletin numbers, the dates are in MM/DD/YYYY format)

Release Name Release Date Build Number Bulletin Number

ESXi670-202103001

Product:ESXi (Embedded and Installable) 6.7.0

Download Size:476.7 MB

03/18/2021

17700523

 ESXi670-202103102-SG

ESXi670-202103103-SG

ESXi670-202103001

ESXi670-202103101-SG

ESXi670-202103401-BG

ESXi670-202103403-BG

ESXi670-202103402-BG

Download

So, for imageprofile ESXi-6.7.0-20210304001-standard (Build 17700523), the release name is ESXi670-202103001 (as it matches Build Number [Wayback] 17700523).

From the above, we now have these links and numbers:

The two common parts above are:

  1. ESXi670-202103001 (both as identifier and as filename ESXi670-202103001.zip)
  2. https://docs.vmware.com/en/VMware-vSphere/6.7/rn/esxi670-202103001.html which contains a table like this that has both a (deprecated!) md5sum and sha1sum value:
    Download Filename: ESXi670-202103001.zip
    Build: 17700523
    Download Size: 476.7 MB
    md5sum: 26f177706bce4a0432d9e8af016a5bad
    sha1checksum: 0263a25351d003d34321a062b391d9fe5c312bd2
    Host Reboot Required: Yes
    Virtual Machine Migration or Shutdown Required: Yes



Back to the download button, where you can validate the filename of the off-line bundle:

The Download button points to a complex URL with these parts:

  • scheme:[//authority]path = https://download2.vmware.com/patch/software/VUM/OFFLINE/release-767-20210316-739878/ESXi670-202103001.zip
  • [?query] is of the form ?HashKey=<32-hexadecimal-digits>&params=<URI-escaped-JSON-string>&AuthKey=<10-decimal-digits>_<32-hexadecimal-digits>
  • Sample values included in params:
    • "custnumber":"ABCDEFGHIJKLMNOP==" 16-digit == padded base64 encoded customer identification
    • "sourcefilesize":"476.7+MB"
    • "dlgcode":"ESXi670-202103001"
    • "languagecode":"en"
    • "source":"PATCH"
    • "downloadtype":"manual"
    • "downloaduuid":"12345678-490a-abcd-efgh12345678" (version 4 variant 1 uuid)
    • "productname":"ESXi+(Embedded+and+Installable)"
    • "productversion":"6.7.0"

2. downloading the offline bundle file and verifying it

The steps taken until now:

  1. Find the most recent imageprofile name at [Wayback] VMware ESXi 6.7 Patch History (in my case ESXi-6.7.0-20210304001-standard)
  2. Find the “Release notes” link right under the table below it (in my case https://docs.vmware.com/en/VMware-vSphere/6.7/rn/esxi670-202103001.html#esxi-6-7-0-20210301001s-standard-resolved)
  3. Browse to the top of that page for the table with the offline bundle identifier and filename

Now

  1. search for the filename (like [Wayback/Archive.is] “ESXi670-202103001.zip” – Google Search) to download, or get the download URL from the VMware patch site (note this URL expires usually within 20 minutes).
  2. download the file using that URL:
    # wget "download-URL" -O /vmfs/volumes/EVO860_500GB/OfflineBundles/ESXi670-202103001.zip
Connecting to download.example.org (192.0.2.0:443)
ESXi670-202103001.zi 100% |****************************************************************************************************************|  454M  0:00:00 ETA

    Yes, that strange IP address is for documentation purposes as you can see in [Wayback] RFC 5737 – IPv4 Address Blocks Reserved for Documentation and Reserved IP addresses – Wikipedia.

  3. verify the download with the above sha1sum (which is included in the ESXi BusyBox shell)
    # sha1sum /vmfs/volumes/EVO860_500GB/OfflineBundles/ESXi670-202103001.zip
0263a25351d003d34321a062b391d9fe5c312bd2  /vmfs/volumes/EVO860_500GB/OfflineBundles/ESXi670-202103001.zip
  4. shutdown all the VM’s, put the machine in maintenance mode, upgrade, verify result, reboot, put the machine out of maintenance mode, start any VM’s that should be up

[Archive.is] [OSError] [Errno 28] No space left on device even … – VMware Technology Network VMTN very importantly mentions to do a dry-run before actually upgrading:

esxcli software profile update --dry-run -p ESXi-6.7.0-20201103001-standard -d /vmfs/volumes/datastore1/update/ESXi670-202011001.zip

If the dry run is successful, do the update with

esxcli software profile update -p ESXi-6.7.0-20201103001-standard -d /vmfs/volumes/datastore1/update/ESXi670-202011001.zip

—jeroen

Posted in ESXi6, ESXi6.5, ESXi6.7, ESXi7, Power User, Virtualization, VMware, VMware ESXi | Leave a Comment »

Chocolatey: I favor ‘choco upgrade’ over ‘choco install’

Posted by jpluimers on 2021/05/06

A while ago I found out that choco upgrade will install a package when it is not installed, and that choco upgrade all will upgrade all installed packages.

So I looked up the documentation of both choco install and choco upgrade (and choco update which will be deprecated) where I bolded parts of the upgrade command:

Given that upgrade can do both an upgrade and an install, I have switched all my install scripts to use upgrade in steaf of install.

Not all of the above commands accept the same set of [Wayback] Chocolatey Software Docs | Commands: Default Options and Switches

-?, --help, -h
     Prints out the help menu.

 -d, --debug
     Debug - Show debug messaging.

 -v, --verbose
     Verbose - Show verbose messaging. Very verbose messaging, avoid using
       under normal circumstances.

     --trace
     Trace - Show trace messaging. Very, very verbose trace messaging. Avoid
       except when needing super low-level .NET Framework debugging. Available
       in 0.10.4+.

     --nocolor, --no-color
     No Color - Do not show colorization in logging output. This overrides
       the feature 'logWithoutColor', set to 'False'. Available in 0.10.9+.

     --acceptlicense, --accept-license
     AcceptLicense - Accept license dialogs automatically. Reserved for
       future use.

 -y, --yes, --confirm
     Confirm all prompts - Chooses affirmative answer instead of prompting.
       Implies --accept-license

 -f, --force
     Force - force the behavior. Do not use force during normal operation -
       it subverts some of the smart behavior for commands.

     --noop, --whatif, --what-if
     NoOp / WhatIf - Don't actually do anything.

 -r, --limitoutput, --limit-output
     LimitOutput - Limit the output to essential information

     --timeout, --execution-timeout=VALUE
     CommandExecutionTimeout (in seconds) - The time to allow a command to
       finish before timing out. Overrides the default execution timeout in the
       configuration of 2700 seconds. '0' for infinite starting in 0.10.4.

 -c, --cache, --cachelocation, --cache-location=VALUE
     CacheLocation - Location for download cache, defaults to %TEMP% or value
       in chocolatey.config file.

     --allowunofficial, --allow-unofficial, --allowunofficialbuild, --allow-unofficial-build
     AllowUnofficialBuild - When not using the official build you must set
       this flag for choco to continue.

     --failstderr, --failonstderr, --fail-on-stderr, --fail-on-standard-error, --fail-on-error-output
     FailOnStandardError - Fail on standard error output (stderr), typically
       received when running external commands during install providers. This
       overrides the feature failOnStandardError.

     --use-system-powershell
     UseSystemPowerShell - Execute PowerShell using an external process
       instead of the built-in PowerShell host. Should only be used when
       internal host is failing. Available in 0.9.10+.

     --no-progress
     Do Not Show Progress - Do not show download progress percentages.
       Available in 0.10.4+.

     --proxy=VALUE
     Proxy Location - Explicit proxy location. Overrides the default proxy
       location of ''. Available for config settings in 0.9.9.9+, this CLI
       option available in 0.10.4+.

     --proxy-user=VALUE
     Proxy User Name - Explicit proxy user (optional). Requires explicit
       proxy (`--proxy` or config setting). Overrides the default proxy user of
       ''. Available for config settings in 0.9.9.9+, this CLI option available
       in 0.10.4+.

     --proxy-password=VALUE
     Proxy Password - Explicit proxy password (optional) to be used with
       username. Requires explicit proxy (`--proxy` or config setting) and
       user name.  Overrides the default proxy password (encrypted in settings
       if set). Available for config settings in 0.9.9.9+, this CLI option
       available in 0.10.4+.

     --proxy-bypass-list=VALUE
     ProxyBypassList - Comma separated list of regex locations to bypass on
       proxy. Requires explicit proxy (`--proxy` or config setting). Overrides
       the default proxy bypass list of ''. Available in 0.10.4+.

     --proxy-bypass-on-local
     Proxy Bypass On Local - Bypass proxy for local connections. Requires
       explicit proxy (`--proxy` or config setting). Overrides the default
       proxy bypass on local setting of 'True'. Available in 0.10.4+.

     --log-file=VALUE
     Log File to output to in addition to regular loggers. Available in 0.1-
       0.8+.

–jeroen

Posted in Batch-Files, Chocolatey, Development, Power User, Scripting, Software Development, Windows | Leave a Comment »

Delphi: types you cannot deprecate

Posted by jpluimers on 2021/05/06

Deprecating all types in a unit besides deprecating the unit itself will cause a hint and warning storm. Especially in projects having a lot of hints and warnings (taking over maintenance of a legacy project comes to mind) this can be very helpful to spot these locations inside many files where some obscure unmaintained unit like GIFImage.pas is still used.

[WayBack] TGIFImage for Delphi | MelanderBlog got donated to (then CodeGear, now Embarcadero) for inclusion in Delphi 2007. It was, as GifImg unit, but only documented since the [WayBack] Delphi 2009 GIFImg Namespace). For more information: delphi 2007 gifimg unit – Google Search

Delphi allows you to deprecate a lot of types, but you cannot deprecate these forms:

  • array [...] of TSomeType
  • ^TSomeType
  • class of TSomeType
  • procedure(...) ...
  • function(...): TSomeType ...
  • reference to procedure(...) ...
  • reference to function(...): TSomeType ...

Putting a deprecated 'use SomeUnit.TSomeOtherType' will fail with:

  • either a compiler error  pair
    • “E2029 ';' expected but identifier 'deprecated' found“.
    • “E2029 '=' expected but string constant found“
  • a compiler error
    • E1030 Invalid compiler directive: 'DEPRECATED'

You can enumerate these kinds of types:

  • enumerations
  • records
  • classes, but only a full class declaration, so
    • not the class forward declaration like TMyClass = class
    • not a shortened class declaration like TMyException = class(Exception), this has to be the full TMyException = class(Exception) end deprecated 'reason';
  • methods only after the last separating ; of the method (so the virtual form is like procedure Name(...); virtual; deprecated 'use another method';)
  • named constants
  • global variables

The last few are not technically types, but included for completeness.

–jeroen

Posted in Conference Topics, Conferences, Delphi, Development, Event, Software Development | Leave a Comment »
