Archive for the ‘ix100’ Category

SCANSNAP iX100 SCANNER REPAIR MANUAL – PFU Ricoh Store

Posted by jpluimers on 2024/11/28

Ordered because all of a sudden, my scanner would only charge over USB, but not connect to any computer any more over USB (likekly because the Micro-USB connector on the mainboard was broken which is odd after just a few 100 inserts which is odd as it should last 10k+ cycles according to USB hardware – Wikipedia) [WaybackSave/Archive] SCANSNAP iX100 SCANNER REPAIR MANUAL – PFU Ricoh Store.

It costs only USB 0.00, so I hope they will send it outside of the USA.

When ordering, you have to agree with these:

When I don’t receive the manual, hopefully the translated version of this video will be of help: [WaybackSave/Archive] Reparación Scanner Fujitsu ScanSnap – Puerto De Carga Micro USB – YouTube -> Fujitsu ScanSnap Scanner Repair – Micro USB Charging Port – YouTube.

Como me pasa muchas veces esto grabe este video. Me piden que repare algo que ya intentaron reparar de la manera incorrecta.

->

As this happens to me many times, I recorded this video. I am asked to repair something that they already tried to repair incorrectly.

Queries:

--jeroen

Posted in Development, Fujitsu ScanSnap, Hardware, Hardware Development, ix100, Power User, Scanners | Leave a Comment »

Some videos on defining ScanSnap scan destinations (Folder, Acrobat, …)

Posted by jpluimers on 2021/10/25

For my link archive some videos below.

Note that I dislike ScanSnap Cloud, as I do not want an intermediate party in between me and my cloud provider.

I much more prefer providers like Google Drive, OneDrive, etc to configure locally and have them upload to the cloud instead of ScanSnap Could also seeing my scanned content.

–jeroen

Posted in Fujitsu ScanSnap, Hardware, ix100, ix1500, ix500, Power User, Scanners | Leave a Comment »

ScanSnap Home 1.4.0 update and release notes

Posted by jpluimers on 2021/09/10

The first stupid thing is that when pressing the “Install” button: it will not ask for UAC elevation, despite the UAC elevation badge:

The second is the release notes from the installer indicate there is more information to be found when clicking, but after clicking it shows exactly the same information:

Update ScanSnap Home to 1.4.0.
Modifications from 1.3.1 to 1.4.0.

– A new feature has been added to perform OCR recognition on an image of a business card or receipt again by marking the necessary parts with a frame on the preview window.

– A new feature has been added to allow users to preview multiple images on the main window.

– A new feature has been added to apply [ScanSnap Manager – Profile] to ScanSnap Home.

– Help menus and contents have been improved, allowing users to find information that they want quickly on the Help.

– Operability for linking with cloud services has been improved.

– Operability for adding and editing profiles on the taskbar has been improved.

– A modification has been made so that you can delete a content data record that is managed in ScanSnap Home even after you delete a file for the content data record in Explorer.

– The waiting time it takes after a scan has been reduced.

– A modification has been made which enables users to use the scan window as soon as it is displayed.

– Operability for contacting your support representative has been improved.

– Fixed the problem that occurs on ScanSnap iX500, preventing the Wi-Fi settings from being configured successfully with an SSID that includes double-byte characters.

– Fixed the problem where the Scan buttons for other users may not be disabled on the touch panel when users are switched.

– Fixed the problem where the scanner turns off even if [Automatic power off] is set to [Never].

– Fixed the problem that occurs when the title of a content data record is changed during text recognition, causing the changed title to return back to the original title.

– Fixed the problem that occurs when scanned images are not managed in ScanSnap Home and when they are linked with a certain application, preventing the scanned images from being saved in a specified folder.

– Fixed the problem that occurs when a connection is established with ScanSnap SDK via Wi-Fi, preventing a serial number from being obtained with the GetScannerInfo command.

– Other miscellaneous bug fixes and improvements have been done.

For details, double-click [ScanSnap Home Update].

–jeroen

Posted in Fujitsu ScanSnap, Hardware, ix100, ix1500, ix500, Power User, Scanners | Leave a Comment »

OCR on documents with Adobe Acrobat XI Standard

Posted by jpluimers on 2021/08/16

Steps to convert PDF to OCR on all pages in Acrobat XI Standard (STD) via [WayBack] PDF to text, how to convert a PDF to text | Adobe Acrobat DC:

  1. Open a PDF file containing a scanned image in Acrobat.
  2. Click on the Edit PDF tool in the right pane. Acrobat automatically applies optical character recognition (OCR) to your document and converts it to a fully editable copy of your PDF.
  3. …
  4. Choose File > Save As and type a new name for your editable document.

Screenshots:

You can select from many OCR languages:

On pages without bitmap content, you see this message:

Only in Acrobat XI or older

Note that Acrobat XI was the last version where this was possible in the Standard edition.

More recent versions of Acrobat, need the Pro version for OCR:

Read the rest of this entry »

Posted in Adobe, Adobe Acrobat, Fujitsu ScanSnap, Hardware, ix100, Power User, Scanners | Leave a Comment »

Automatically closing ABBY Finereader 5.0 windows after scanning is completed

Posted by jpluimers on 2021/02/23

Both my Fujitsu ScanSnap ix500 and ix100 scanners can be used from Windows to automatically scan to PDF.

PDF conversion is done through the included ABBYY FineReader 5.0 software.

However, on each scan, it keeps a dialog open with the scan results, even if scanning went fine.

When scanning lots of documents, lots of dialogs are open, causing two problems:

  • a lot of memory and window handle resource usage
    • this can be ~100 megabytes per instance
  • a lot of disk usage:
    • it keeps both the non-OCR and OCR PDF files active (only when closing, the non-OCR PDF file is deleted)

I wanted to close that dialog automatically, but none of the configuration settings allow it.

So I wrote a quick and dirty solution, that could have been in any tool supporting the Windows API and call backs. The solution below should easily translate to tools other than Delphi.

These are the only Windows API functions used:

these types:

and these constants:

The basic structure is an EumWindows call passing a callback that gets called for all top level Windows, then in the callback, for matching captions: call EnumChildWindows with another callback. In that callback, for matching captions and child captions, perform a click or close.

Related posts:

Log of Windows related to both programs:

ParentHWnd=$00000000;HWnd=$00030602;IsVisible=-1;IsOwned=0;IsAppWindow=-1;WindowTextLength=33;WindowText="ABBYY FineReader for ScanSnap 5.0"
> Recursive child windows for ABBYY
  ParentHWnd=$00030602;HWnd=$000205E2;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=0;WindowText=""
  ParentHWnd=$00030602;HWnd=$000205E0;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=0;WindowText=""
  ParentHWnd=$00030602;HWnd=$000205EC;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=0;WindowText=""
  ParentHWnd=$00030602;HWnd=$000205EA;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=74;WindowText="Register your copy of ABBYY FineReader and receive the following benefits:"
  ParentHWnd=$00030602;HWnd=$000205E8;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=25;WindowText="- Free technical support;"
  ParentHWnd=$00030602;HWnd=$000205E6;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=51;WindowText="- Information about new versions of ABBYY products."
  ParentHWnd=$00030602;HWnd=$000205E4;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=12;WindowText="Registration"
  ParentHWnd=$00030602;HWnd=$000205FC;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=0;WindowText=""
  ParentHWnd=$00030602;HWnd=$000205FA;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=6;WindowText="&Close"
  > Child is Close button: clicking.
  < ParentHWnd=$00000000;HWnd=$00030602;IsVisible=-1;IsOwned=0;IsAppWindow=-1;WindowTextLength=33;WindowText="ABBYY FineReader for ScanSnap 5.0"
  ParentHWnd=$00030602;HWnd=$000205F6;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=34;WindowText="Processing finished (warnings: 1)."
  ParentHWnd=$00030602;HWnd=$000205F4;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=31;WindowText="Converting to searchable PDF..."
  ParentHWnd=$00030602;HWnd=$000205F0;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=0;WindowText=""
  ParentHWnd=$00030602;HWnd=$000205EE;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=0;WindowText=""
  ParentHWnd=$00030602;HWnd=$000205D2;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=63;WindowText="Page 1. Make sure the correct recognition language is selected."

ParentHWnd=$00000000;HWnd=$00010248;IsVisible=-1;IsOwned=-1;IsAppWindow=0;WindowTextLength=14;WindowText="Creative Cloud"
> Recursive child windows for Creative Cloud
  ParentHWnd=$00010248;HWnd=$0001024A;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=28;WindowText="Main Container Client Dialog"
  ParentHWnd=$00010248;HWnd=$0002034A;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=3;WindowText="IMS"
  ParentHWnd=$00010248;HWnd=$0001035A;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=0;WindowText=""
  ParentHWnd=$00010248;HWnd=$00020350;IsVisible=-1;IsOwned=0;IsAppWindow=0;WindowTextLength=18;WindowText="Sign in - Adobe ID"
  > Child is Signin button: closing parent.
  < ParentHWnd=$0003011A;HWnd=$00010248;IsVisible=-1;IsOwned=-1;IsAppWindow=0;WindowTextLength=14;WindowText="Creative Cloud"
    < ParentHWnd=$00000000;HWnd=$0003011A;IsVisible=0;IsOwned=0;IsAppWindow=0;WindowTextLength=4;WindowText="Core"

It appears that ABBYY has a different set of booleans than Creative Cloud.

This is kind of odd, as delphi – How to get captions of actual windows currently running? – Stack Overflow points to Window Features – Windows applications | Microsoft Docs: Owned Windows stating:

The Shell creates a button on the taskbar whenever an application creates a window that isn’t owned. To ensure that the window button is placed on the taskbar, create an unowned window with the WS_EX_APPWINDOW extended style. To prevent the window button from being placed on the taskbar, create the unowned window with the WS_EX_TOOLWINDOW extended style. As an alternative, you can create a hidden window and make this hidden window the owner of your visible window.

Apparently, ABBYY fully plays by the rules, but Creatheive Cloud cheats a bit: none of the Windows are WS_EX_APPWINDOW, but the hidden unowned “Core” owner of the “Creative Cloud” still makes it appear on the taskbar.

–jeroen

Read the rest of this entry »

Posted in Delphi, Development, Fujitsu ScanSnap, Hardware, ix100, ix500, Power User, Scanners, Software Development, Windows Development | Leave a Comment »

Automating the closing of the Creative Cloud signing and ABBY FindReader for ScanSnap 5.0 dialogs

Posted by jpluimers on 2021/01/06

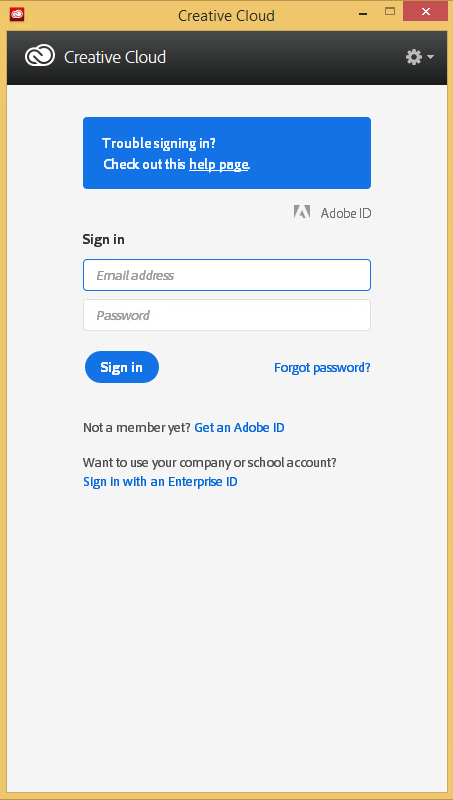

Every time my scan VM logs on I get the dialog on the right.

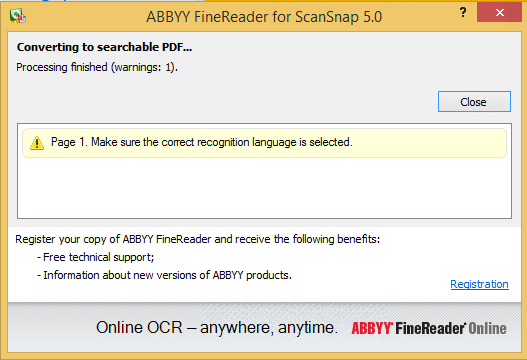

Every time I finish an OCR scan, I get the dialog below.

There are two reasons I want to close the ABBY dialog:

  1. While open, it will keep both the original PDF and OCR PDF files alive.When after a while, Windows updates auto-reboots the machine, before clicking the OK buttons I have to manually check if the conversion succeeded before removing the non-OCR PDF.This is time consuming.

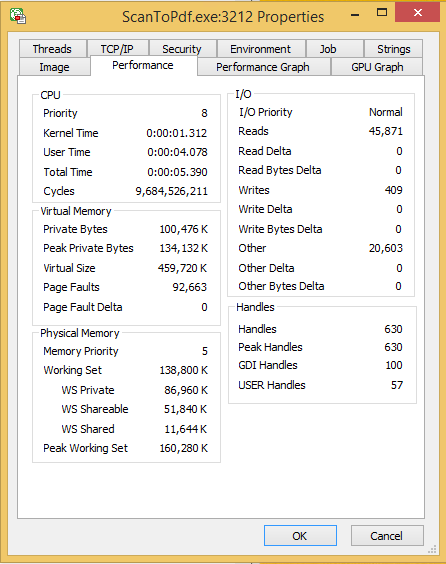

  2. While open, it still consumes a lot of system resources: about 100 megabyte for a simple single monochrome A4 page. Much more for complex, multi-page or colour documents.When scanning a lot of document this causes the system to run out of memory, after becoming much much slower because the truckload of Window handles and underlying threads drags Windows down.

I do not want to fully get rid of these dialogs, as often being aware of the progress is important, and I always forget how to re-enable things. If you can do without the dialogs, then try these:

Finding the Windows and controls

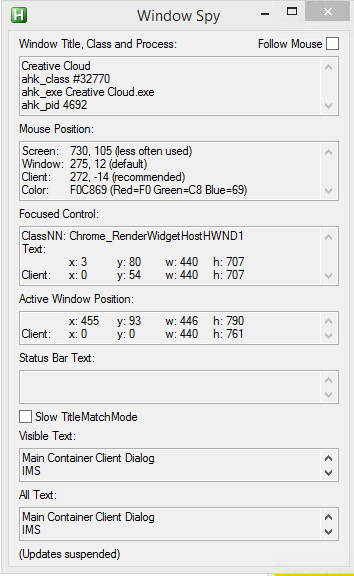

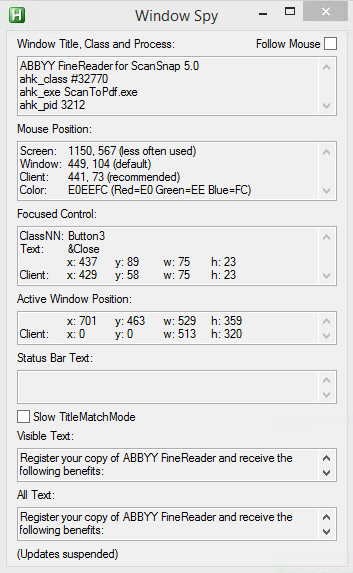

I did use one nice feature of AutoHotKey: their Windows Spy utility, which is implemented as a AHK script: [WayBack] AutoHotKey-scripts/WindowSpy.ahk at master · elig0n/AutoHotKey-scripts · GitHub. In the past this was a separate executable, so do not start looking for that any more. You can get it either after a full install of the [WayBack] Releases · Lexikos/AutoHotkey_L · GitHub, or by extracting from the most current AutoHotKey.zip from [Archive.is] AutoHotkey Downloads.

Related:

This gets these for the Create Cloud and ABBY windows:

Automating the click

I contemplated about using AutoIt (freeware, but closed source) or AutoHotKey_L (the current active fork of AutoHotKey).

AutoIt is now closed source, forked in the past as AutoHotKey, which has a lot of half backed – usually poorly documented – scripts needing you to learn a new API wrapper around existing Windows API functionality.

So I reverted back to using the Windows API using Delphi: a simple repeat loop, to check for the existence of the underlying processes, windows and controls, plus some logic to terminate then the user stops the application (Ctrl-C, Ctrl-Break), logs off, or Windows shuts down.

Releated Windows API  keywords and posts:



I could have used AutoHotKey with these hints to get it working:

MacOS

Note that when you run on MacOS, you need an alternative like for instance the video below shows via [WayBack] Stop ScanSnap From Prompting You When You Scan.

–jeroen

Read the rest of this entry »

Posted in Development, Fujitsu ScanSnap, Hardware, ix100, ix500, Power User, Scanners, Scripting, Software Development, Windows, Windows 10, Windows 8.1 | Leave a Comment »

Mint 17/SANE will not recognize Fujitsu ScanSnap ix500 scanner : linuxmint

Posted by jpluimers on 2019/04/26

For my link archive:

Mint 17/SANE will not recognize Fujitsu ScanSnap ix500 scanner
byu/Finsternis inlinuxmint

Posted in Fujitsu ScanSnap, Hardware, ix100, ix500, Power User, Scanners | Leave a Comment »

ScanSnap ix100 info you don’t find in the Getting Started guide easily

Posted by jpluimers on 2019/01/28

Always fun when Getting Started guide makes it hard to find essential information, but the installation mentions it after installing:

ScanSnap is initially set to turn off automatically after a certain time of non-activity.
The power-off interval can be changed from the [ScanSnap Manager – Preferences] window.

To turn the ScanSnap back on, perform one of the following:

  • Press the [Scan] button
  • Close the ADF paper chute (cover) and open it again

The installer then continues to ask to connect it over USB, though the Getting Started guide mentions you can connect over WiFi.

There the “monkey gets out of the sleeve” as the WiFi installer mentions this:

ScanSnap Wireless Network Setup

To start up the Wireless Setup Tool, perform the following:

  • Turn on ScanSnap
  • Turn on the Wi-Fi switch on the ScanSnap
  • Connect ScanSnap to the computer via the USB cable

(i) If you start up the Wireless Setup Tool via Wi-Fi, some functions are not available.

Too bad it doesn’t explain which functions are not available, not even a web-search or the [WayBack] manuals:

Read the rest of this entry »

Posted in Fujitsu ScanSnap, Hardware, ix100, Power User, Scanners | Leave a Comment »

ScanSnap ix100 open ports

Posted by jpluimers on 2019/01/25

For my archive: the open ports on the ix100 WiFi connection:

# sudo nmap -O -v -A -p- -Pn 192.168.0.1
Password:

Starting Nmap 7.50 ( https://nmap.org ) at 2017-08-01 17:40 CEST
NSE: Loaded 144 scripts for scanning.
NSE: Script Pre-scanning.
Initiating NSE at 17:40
Completed NSE at 17:40, 0.00s elapsed
Initiating NSE at 17:40
Completed NSE at 17:40, 0.00s elapsed
Initiating ARP Ping Scan at 17:40
Scanning 192.168.0.1 [1 port]
Completed ARP Ping Scan at 17:40, 0.01s elapsed (1 total hosts)
Initiating Parallel DNS resolution of 1 host. at 17:40
Completed Parallel DNS resolution of 1 host. at 17:40, 0.03s elapsed
Initiating SYN Stealth Scan at 17:40
Scanning 192.168.0.1 [65535 ports]
Discovered open port 53218/tcp on 192.168.0.1
Discovered open port 53219/tcp on 192.168.0.1
Completed SYN Stealth Scan at 17:40, 51.05s elapsed (65535 total ports)
Initiating Service scan at 17:40
Scanning 2 services on 192.168.0.1
Service scan Timing: About 50.00% done; ETC: 17:41 (0:00:32 remaining)
Completed Service scan at 17:41, 31.85s elapsed (2 services on 1 host)
Initiating OS detection (try #1) against 192.168.0.1
NSE: Script scanning 192.168.0.1.
Initiating NSE at 17:41
Completed NSE at 17:41, 0.04s elapsed
Initiating NSE at 17:41
Completed NSE at 17:41, 0.02s elapsed
Nmap scan report for 192.168.0.1
Host is up (0.0037s latency).
Not shown: 65533 closed ports
PORT      STATE SERVICE VERSION
53218/tcp open  unknown
| fingerprint-strings:
|   DNSStatusRequest, DNSVersionBindReq, GenericLines, LPDString, NULL, WMSRequest, afp, oracle-tns:
|_    VENS
53219/tcp open  unknown
| fingerprint-strings:
|   DNSStatusRequest, DNSVersionBindReq, GenericLines, LPDString, NULL, WMSRequest, afp, oracle-tns:
|_    VENS
2 services unrecognized despite returning data. If you know the service/version, please submit the following fingerprints at https://nmap.org/cgi-bin/submit.cgi?new-service :
==============NEXT SERVICE FINGERPRINT (SUBMIT INDIVIDUALLY)==============
SF-Port53218-TCP:V=7.50%I=7%D=8/1%Time=5980A106%P=x86_64-apple-darwin16.6.
SF:0%r(NULL,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0\0")%r(GenericLines,10,"\0\0\0
SF:\x10VENS\0\0\0\0\0\0\0\0")%r(DNSVersionBindReq,10,"\0\0\0\x10VENS\0\0\0
SF:\0\0\0\0\0")%r(DNSStatusRequest,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0\0")%r(
SF:LPDString,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0\0")%r(WMSRequest,10,"\0\0\0\
SF:x10VENS\0\0\0\0\0\0\0\0")%r(oracle-tns,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0
SF:\0")%r(afp,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0\0");
==============NEXT SERVICE FINGERPRINT (SUBMIT INDIVIDUALLY)==============
SF-Port53219-TCP:V=7.50%I=7%D=8/1%Time=5980A106%P=x86_64-apple-darwin16.6.
SF:0%r(NULL,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0\0")%r(GenericLines,10,"\0\0\0
SF:\x10VENS\0\0\0\0\0\0\0\0")%r(DNSVersionBindReq,10,"\0\0\0\x10VENS\0\0\0
SF:\0\0\0\0\0")%r(DNSStatusRequest,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0\0")%r(
SF:LPDString,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0\0")%r(WMSRequest,10,"\0\0\0\
SF:x10VENS\0\0\0\0\0\0\0\0")%r(oracle-tns,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0
SF:\0")%r(afp,10,"\0\0\0\x10VENS\0\0\0\0\0\0\0\0");
MAC Address: 84:25:3F:25:7F:21 (silex technology)
Device type: general purpose
Running: Linux 2.6.X
OS CPE: cpe:/o:linux:linux_kernel:2.6
OS details: Linux 2.6.17 - 2.6.36
Uptime guess: 248.550 days (since Sat Nov 26 03:30:04 2016)
Network Distance: 1 hop
TCP Sequence Prediction: Difficulty=199 (Good luck!)
IP ID Sequence Generation: All zeros

TRACEROUTE
HOP RTT     ADDRESS
1   3.66 ms 192.168.0.1

NSE: Script Post-scanning.
Initiating NSE at 17:41
Completed NSE at 17:41, 0.00s elapsed
Initiating NSE at 17:41
Completed NSE at 17:41, 0.00s elapsed
Read data files from: /usr/local/bin/../share/nmap
OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 85.09 seconds
           Raw packets sent: 65856 (2.898MB) | Rcvd: 65608 (2.625MB)

The nmap is aliased as nmap-fingerprint_host_all-ports-even-if-ping-fails

–jeroen

Posted in *nix, *nix-tools, Fujitsu ScanSnap, ix100, nmap, Power User, Scanners | Leave a Comment »

Anaylizing PDF files

Posted by jpluimers on 2018/12/10

A few things that failed/worked:

I still need to look at the Multivalent.jar when I have a system with Java again, as it is mentioned in [WayBack] pdf generation – Is there a tool to analyze a PDF in terms of fonts, objects, fields and their respective size (kb)? – Stack Overflow

References:

–jeroen

Posted in Adobe, Adobe Acrobat, Fujitsu ScanSnap, Hardware, ix100, ix500, Power User, Scanners | Leave a Comment »
