Archive for the ‘Odroid’ Category

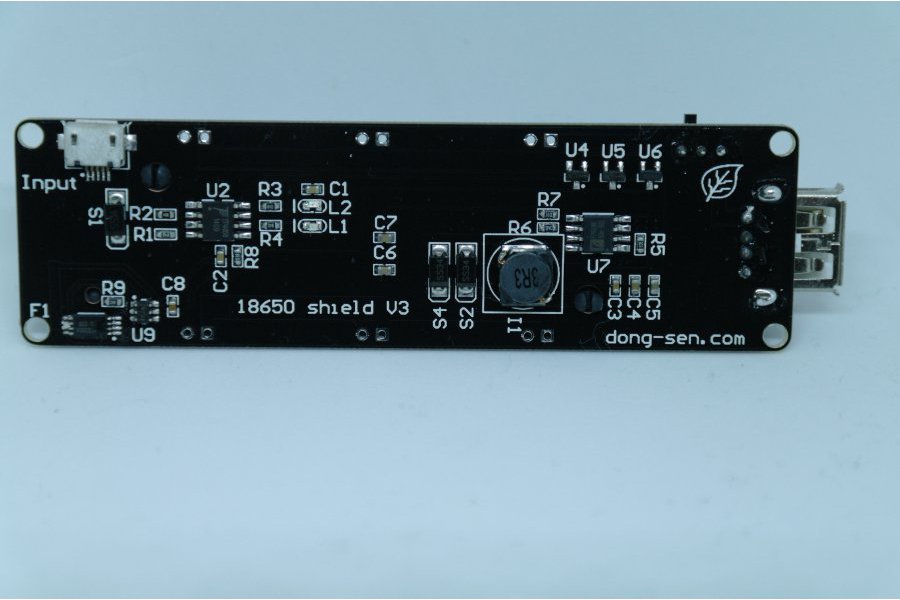

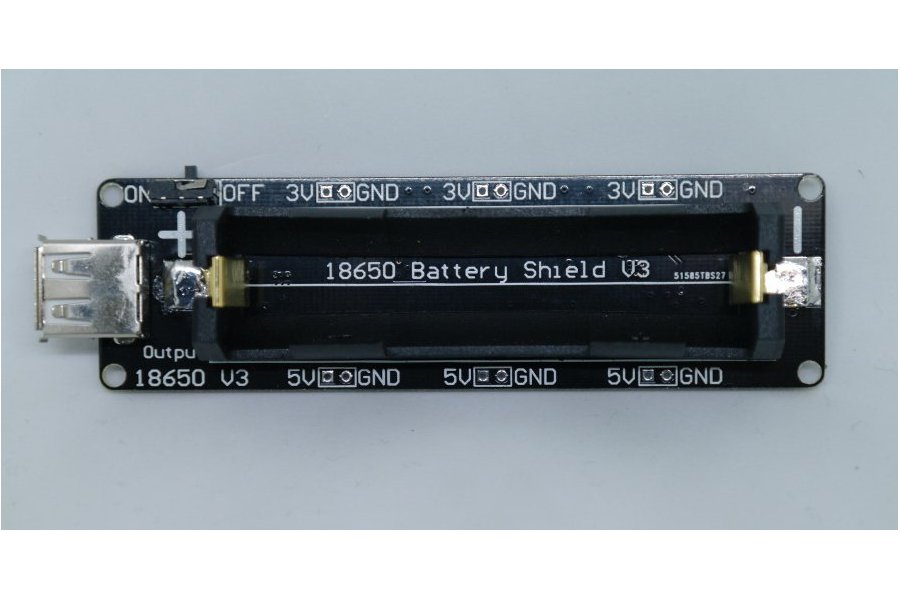

18650 Battery shield V3(RaspberryPi&Arduino) from lspoplove on Tindie

Posted by jpluimers on 2020/03/04

As you know Tesla has thousands of 18650 batteries. The 18650 battery is a strong existence. So we made this 18650 battery shield for maker.

Features:

  • Battery protection(Over charge or Over discharge)
  • Micro USB port Input
  • Type-A USB Output
  • 0.5A current charging
  • 1 switch control USB output
  • 5~8V Input Voltage
  • 3V & 1A Output
  • 5V & 2A Output
  • LED indicate(Green means full,Red means charging)
  • 3V output port x3
  • 5V output port x3

Charging can only be done at 0.5A, so using it as a sort of UPS seems not possible, but an interesting device nonetheless.

The other products referenced from the same page are interesting too and will undoubtedly bring me some new ideas for some projects.

Source: [WayBack18650 Battery shield V3(RaspberryPi&Arduino) from lspoplove on Tindie

Via:

–jeroen



Posted in Arduino, Development, ESP8266, Hardware Development, Odroid, Raspberry Pi | Leave a Comment »

MotionEyeOS on Odroid C1+ with Logitech USB web cameras

Posted by jpluimers on 2018/10/11

Hopefully I get this to work after fixing

The first part of the fix was to

  1. re-image the SD card.
  2. boot
  3. wait 5 minutes (there is no output on HDMI apart from some flickering and no output on TTY using 115200 bits/second despite trying [WayBacken:c1_hardware_uart [ODROID Wiki])

The second part is getting the USB web cameras to work.

I’ve got two types, but the label on them doesn’t list their common name, only their P/N sometimes with M/N:

  1. P/N 860-000049 M/N V-UBC40 (really old USB cameras)
  2. P/N 860-000334 (new USB camera)

The MotionEyeOS web interface didn’t list any working cameras so I had to do some digging.

Luckily [WayBackWebcam software and driver support for Windows has a table of part and model numbers combined with product names, so they got revealed them as these:

  1. P/N 860-000334 = M/N V-U0028  with name HD Pro Webcam C920
  2. P/N 861225 = M/N V-UBC40 with name Quick Cam Messenger
    (which is funny as the P/N on the label is different)

Both are supported by motion according to [WayBackLogitech < Motion < Foswiki though the Quick Cam Messenger needs [WayBackQuickcam Messenger & Communicate driver for Linux which I should try to cross-compile one day.

The latter works fine. Below are some settings I used.

Read the rest of this entry »

Posted in *nix, Development, Hardware Development, Linux, Odroid, Power User | Leave a Comment »

Giving up on the official Ubuntu for Odroid C1 image

Posted by jpluimers on 2018/10/09

After the trouble in Ubuntu: Fixing the myserious “Failed to stop apt-daily.timer: Connection timed out” I got into more trouble:
apt-get update && apt-get upgrade hung the device.

It booted fine, but a new update showed it was in a hosed state.

I don’t expect vendor supported distributions to fail this way, so I gave up on the ubuntu-16.04-minimal-odroid-c1-20160817.img.xz .

–jeroen

Posted in Development, Hardware Development, Odroid | 3 Comments »

Ubuntu: Fixing the myserious “Failed to stop apt-daily.timer: Connection timed out”

Posted by jpluimers on 2018/05/14

Ubuntu is the only Linux system I had that – after installing a text-mode console setup – gets itself in the below state with only running apt update and apt-get upgrade.

Preparing to unpack .../archives/apt_1.2.19_armhf.deb ...
Failed to stop apt-daily.timer: Connection timed out
See system logs and 'systemctl status apt-daily.timer' for details.
Failed to get load state of apt-daily.timer: Connection timed out
dpkg: warning: subprocess old pre-removal script returned error exit status 1

I could not find meaningful search results for the above thing, nor did systemctl status apt-daily.timer return anything better than

Failed to get properties: Failed to activate service 'org.freedesktop.systemd1': timed out

Heck, it doesn’t even reboot any more (no helpful search results either):

# reboot
Failed to start reboot.target: Failed to activate service 'org.freedesktop.systemd1': timed out
See system logs and 'systemctl status reboot.target' for details.
Failed to open /dev/initctl: No such device or address
Failed to talk to init daemon.

Nor did systemctl status reboot.target return anything better than

Failed to get properties: Failed to activate service 'org.freedesktop.systemd1': timed out

From the ubuntu-16.04-minimal-odroid-c1-20160817.img.xz base system, it only had these extra packages installed:

  • etckeeper
  • tmux
  • speedtest-cli
  • sendemail

Workaround found, but still unsure why this happened in the first place

Despite the workaround below, I still don’t know why I got into this situation and this leaves me with a very uncomfortable feeling.

Too bad some systems (like ODroid) only have Ubuntu based distributions as sorting out stuff like above took me way too much effort.

Read the rest of this entry »

Posted in *nix, Development, Hardware Development, Linux, Odroid, Power User, Ubuntu | 2 Comments »

Using a Mac for prepping the SD-card for an ODROID-C1+

Posted by jpluimers on 2018/02/12

Some notes based on The woods and trees of OpenSuSE on single-board computers – image abbreviations – and getting it installed using OS X « The Wiert Corner – irregular stream of stuff.

I needed to get Ubuntu on an ODROID-C1+ (as it looks like nobody is maintaining a current OpenSuSE for it).

Installing the ODROID-C1+ image using OS X

Download image

Download either of these (note that “minimal” is different from “mate minimal”; see https://www.youtube.com/watch?v=jOYWx_YToh8) from de.eu.odroid.in/ubuntu_16.04lts:

Put image on SD card

I installed on a 8 gigabyte SD card that revealed itself as /dev/disk1 using this diskutil command (via osx – List all devices connected, lsblk for Mac OS X – Ask Different [WayBack])

diskutil list

So this wrote the image to SD card in a sudo su - prompt:

targetDevice="disk1"
unxz --keep ubuntu-16.04-minimal-odroid-c1-20160817.img.xz; \
diskutil umount "/dev/${targetDevice}s1"; \
dd bs=1m of="/dev/r${targetDevice}" if=ubuntu-16.04-minimal-odroid-c1-20160817.img; \
sync; \
diskutil list; \
diskutil eject "/dev/${targetDevice}"

Boot and first time steps on Odroid

Use the default user and password that [WayBackODROID Forum • View topic – Ubuntu Minimal User / Password mentions:

odroid login: root
Password: odroid

From there, create a new user and add it to the sudo group (I used visudo to check the correct group for sudoers) :

adduser jeroenp
addgroup jeroenp sudo

And then hook it up to the network and get the IP address:

ifconfig

Now you can ssh into the odroid with user jeroenp and the password assigned to it. You can also perform a sudo su - to get to root level.

ssh and configure a few things

First of all, install etckeeper as it’s a life saver:

apt-get install etckeeper

This will install some other packages, but that’s OK; it will end suggesting you to enter email address, name and perform an initial commit:

Initialized empty Git repository in /etc/.git/

*** Please tell me who you are.

Run

  git config --global user.email "you@example.com"
  git config --global user.name "Your Name"

to set your account's default identity.
Omit --global to set the identity only in this repository.

fatal: unable to auto-detect email address (got 'root@odroid.(none)')
etckeeper commit failed; run it by hand

Do that:

cd /etc
git config --global user.email "example@example.org"
git config --global user.name "Example User"
git commit -m "initial commit"

Now perform these steps:

  1. Change the root password
  2. Disable etckeeper daily autocommits
  3. Change the hostname
  4. Update/Upgrade/Distribution-upgrade
  5. Fix the cursor in console mode

Change root password:

# sudo su -
# passwd
Enter new UNIX password:
Retype new UNIX password:
passwd: password updated successfully

Disable etckeeper daily autocommits involves one line in /etc/etckeeper/etckeeper.conf:

-#AVOID_DAILY_AUTOCOMMITS=1
+AVOID_DAILY_AUTOCOMMITS=1

Change the hostname; assuming your new host name is newHostName.

  1. edit /etc/hosts and replace the old hostname with newHostName
  2. Perform these commands:
    hostnamectl set-hostname newHostName
    exec bash
    hostname -f

Both the command prompt and the hostname output should show newHostName.

Update/Upgrade:

apt-get update
apt-get upgrade

Fix the cursor in console mode:

Somehow the Odroid C1+ does not support a blinking hardware text cursor.



–jeroen

Posted in Development, Hardware Development, Linux, Odroid, openSuSE, Raspberry Pi, SuSE Linux, Tumbleweed, Ubuntu | Leave a Comment »
