Windows service states and service state transitions

Posted by jpluimers on 2018/09/12

States via [WayBackSERVICE_STATUS structure (Windows)

Value Hex Meaning
SERVICE_CONTINUE_PENDING 0x00000005 The service continue is pending.
SERVICE_PAUSE_PENDING 0x00000006 The service pause is pending.
SERVICE_PAUSED 0x00000007 The service is paused.
SERVICE_RUNNING 0x00000004 The service is running.
SERVICE_START_PENDING 0x00000002 The service is starting.
SERVICE_STOP_PENDING 0x00000003 The service is stopping.
SERVICE_STOPPED 0x00000001 The service is not running.

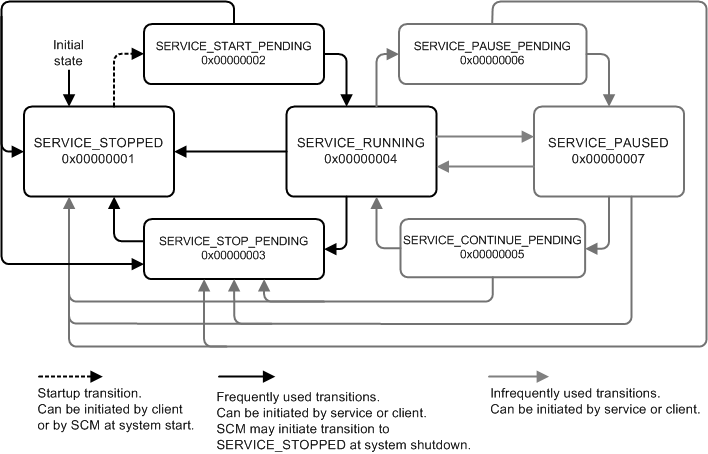

State transition overview

It’s complex as a table, so there are two.

  • The initial state is SERVICE_STOPPED.
  • Most logical targets are in italic.

Common transitions:

From state To state
SERVICE_STOPPED SERVICE_START_PENDING
SERVICE_START_PENDING SERVICE_RUNNING
SERVICE_START_PENDING SERVICE_STOPPED
SERVICE_START_PENDING SERVICE_STOP_PENDING
SERVICE_RUNNING SERVICE_STOPPED
SERVICE_RUNNING SERVICE_STOP_PENDING
SERVICE_STOP_PENDING SERVICE_STOPPED

Infrequent transitions:

From state To state
SERVICE_RUNNING SERVICE_PAUSE_PENDING
SERVICE_RUNNING SERVICE_PAUSED
SERVICE_PAUSE_PENDING SERVICE_PAUSED
SERVICE_PAUSE_PENDING SERVICE_STOP_PENDING
SERVICE_PAUSE_PENDING SERVICE_STOPPED
SERVICE_PAUSED SERVICE_RUNNING
SERVICE_PAUSED SERVICE_CONTINUE_PENDING
 SERVICE_PAUSED SERVICE_STOP_PENDING
 SERVICE_PAUSED SERVICE_STOPPED
SERVICE_CONTINUE_PENDING SERVICE_RUNNING
 SERVICE_CONTINUE_PENDING  SERVICE_STOP_PENDING
 SERVICE_CONTINUE_PENDING  SERVICE_STOPPED

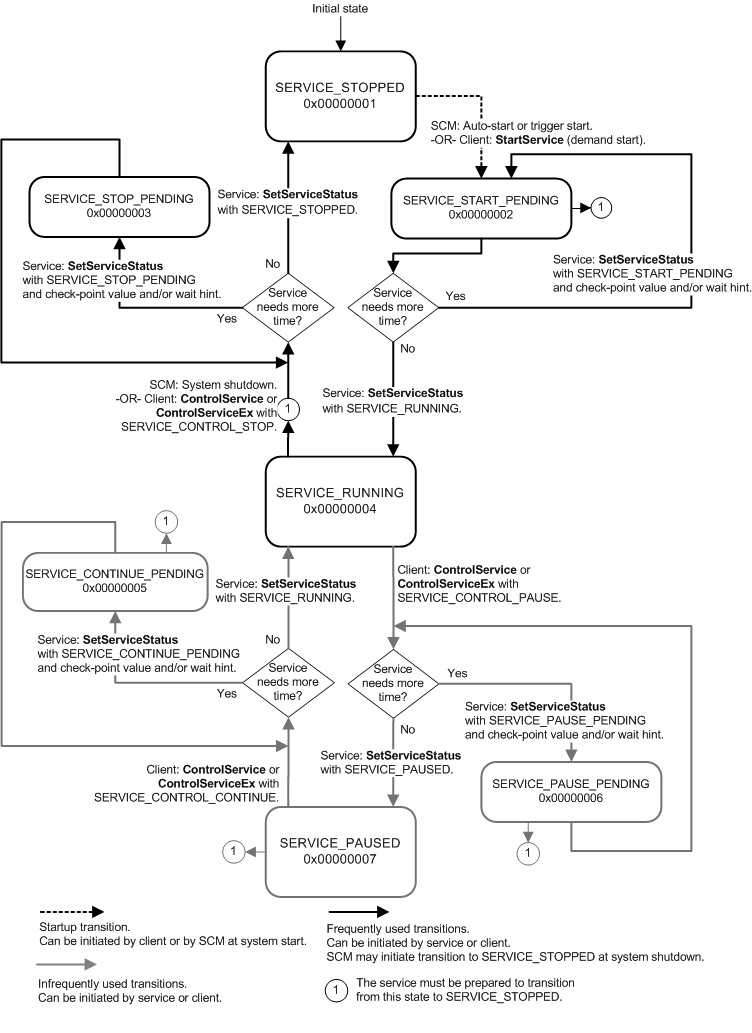

Detailed state transitions

There are in fact more transitions as some states can transit into themselves:

Source: [WayBackService State Transitions (Windows)

–jeroen
