Some links on Gigabyte GA-Z77-DS3H mainboards
Posted by jpluimers on 2022/09/05
The board supports mSATA which is an older standard so it is harder to get media for it. I keep mixing up mSATA and M.2 all the time, so:
- Serial ATA: Mini-SATA (mSATA) – Wikipedia
- PCI Express: Mini-SATA (mSATA) variant – Wikipedia
- [Wayback/Archive.is] What’s the Difference Between mPCIe and mSATA? | Electronic Design
- [Wayback/Archive.is] Comparing M.2 SATA vs. mSATA | Delkin Devices
mSATA, or miniSATA, is a smaller, thinner version of the full-size SATA SSD. The current mSATA works using SATA III, so it also reaches speeds of up to 6Gb/s. mSATA is essentially the same as the SATA SSD, except the outer shell is removed in order for it to be used in thin-profile devices. Many devices rely on mSATA, so although newly designed applications may opt to use M.2 SATA, mSATA still plays a central role in industrial storage.
- [Wayback/Archive.is] Solid state drives vergelijken & kopen (filter: mSATA) – Tweakers
The Gigabyte GA-Z77-DS3H manuals (see below) note “The mSATA connector conforms to SATA 3Gb/s standard and can connect to a single solid-state drive.”
Note that there is both a Gigabyte GA-Z77-DS3H rev 1.0 and 1.1 ([Archive.is] the revision number is in the corner on the long side near the PCI/PCIe slots; mine is [Wayback/Archive.is] rev 1.0), of which the main differences is the 4-pin versus 8-pin ATX power connector:

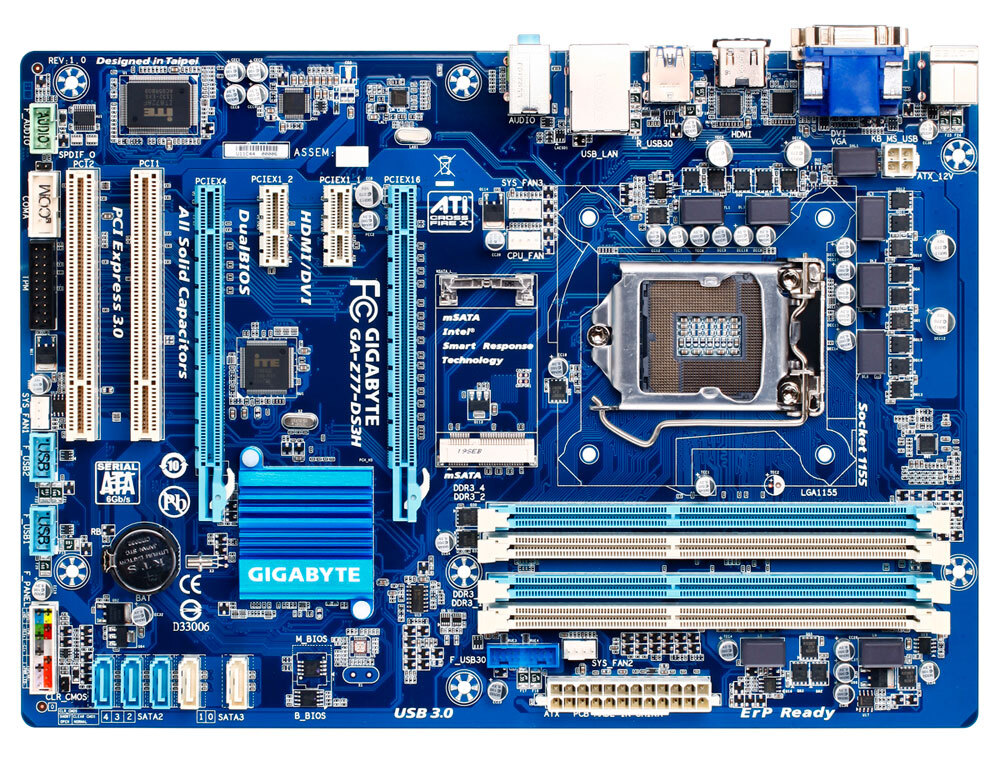

- 4-pin ATX connector on [Wayback/Archive.is] GA-Z77-DS3H (rev. 1.0) Overview | Motherboard – GIGABYTE Global:

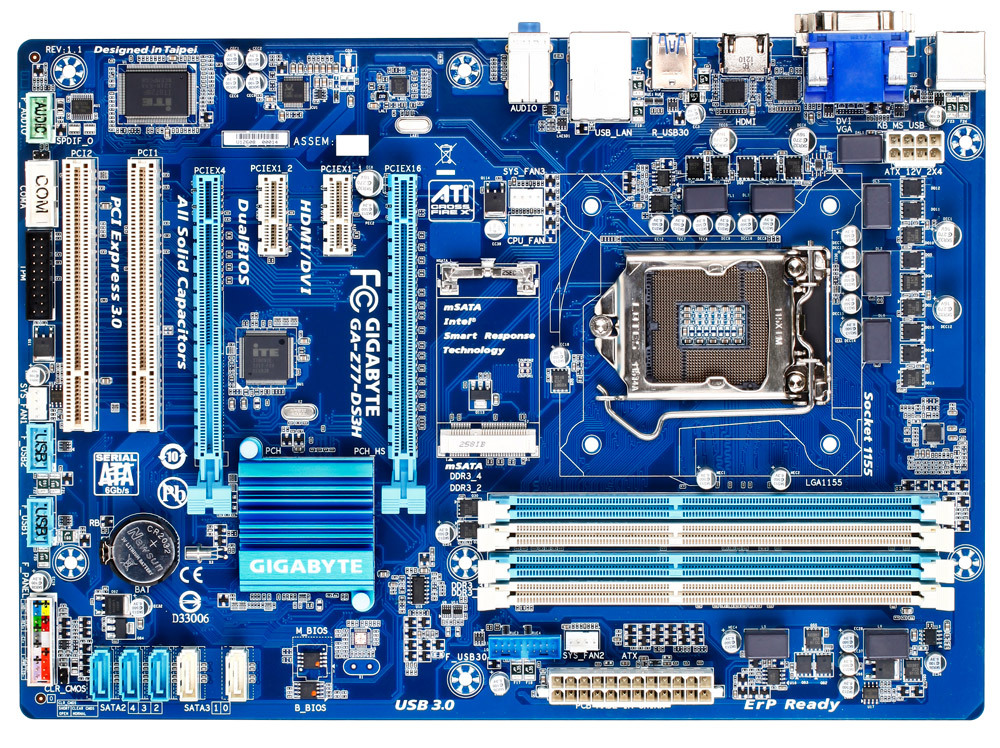

- 8-pin ATX connector on [Wayback/Archive.is] GA-Z77-DS3H (rev. 1.1) Overview | Motherboard – GIGABYTE Global:
[
[More links:
- [Wayback/Archive] GA-Z77-DS3H (rev. 1.0) Support | Motherboard – GIGABYTE Global
- [Wayback/Archive] GA-Z77-DS3H (rev. 1.1) Support | Motherboard – GIGABYTE Global
- Most recent beta BIOS is [Wayback] F11a (3.81 MB 2013/11/13), a regular version was never released
- Most recent regular BIOS is [Wayback] F9 (3.68 MB 2012/09/27)
- [Wayback/Archive.is] Gigabyte GA-Z77-DS3H – Kenmerken – Tweakers
- [Wayback/Archive.is] Gigabyte GA-Z77-DS3H – Reviews – Tweakers
Pluspunten
- mSATA onboard
- 3D Bios
Minpunten
- Bij grote GPU kaarten worden de toch al schaarse SATA poorten geblokkeerd en kunnen dus niet worden gebruikt.
- Beperkte overklokbaarheid tot ongeveer 1Ghz meer.
- Aftermarket CPU cooler kan tegen de Memory module aanzitten.
- Het tweede PCIe slot is maar 4x.
- [Wayback/Archive.is] Gigabyte GA-H77-DS3H – TERW_DAN – Userreviews – Tweakers is extensive and has good pictures; click on them for an enlarged version:
1
:strip_exif()/m/26632/1zYGjm1Jy3Sj1zjnaSa1JlfdHra1UBYuBFEty8dXM2mMAH7mK8.jpeg?f=thumb)
2:strip_exif()/m/26632/1zYGjm0tD92xViZtypo4jcUP595tMgx65TTbTQJTd2xmma4XPq.jpeg?f=thumb)
3 :strip_exif()/m/26632/1zYGjm3SxHGEK7bkDUlUFlStZeXQocJ0MYQCIOKuwQCXvzLRFd.jpeg?f=thumb)
4 :strip_exif()/m/26632/1zYGjm1woXpVprtYNUHexqj1bIzgKPxhW3FqnChSe98lwrxr1l.jpeg?f=thumb)
Even larger: [Wayback/Archive.is]1, [Wayback/Archive.is] 2, [Wayback/Archive.is] 3, [Wayback/Archive.is] 4.
- [Wayback/Archive.is] Gigabyte GA-Z77-DS3H – Reviews – Tweakers
:no_upscale():strip_icc():fill(white):strip_exif()/m/26632/1zYGjm1Jy3Sj1zjnaSa1JlfdHra1UBYuBFEty8dXM2mMAH7mK8.jpeg?f=user_large)
:no_upscale():strip_icc():fill(white):strip_exif()/m/26632/1zYGjm0tD92xViZtypo4jcUP595tMgx65TTbTQJTd2xmma4XPq.jpeg?f=user_large)
:no_upscale():strip_icc():fill(white):strip_exif()/m/26632/1zYGjm3SxHGEK7bkDUlUFlStZeXQocJ0MYQCIOKuwQCXvzLRFd.jpeg?f=user_large)
:no_upscale():strip_icc():fill(white):strip_exif()/m/26632/1zYGjm1woXpVprtYNUHexqj1bIzgKPxhW3FqnChSe98lwrxr1l.jpeg?f=user_large)
–jeroen
