Archive for the ‘EPS/PostScript’ Category

How isotopp became the online handle of Kristian K√∂hntopp

Posted by jpluimers on 2022/06/09

Like me, [] Kristian Köhntopp is a nerd.

Unlike me, Kris bumped into character encoding issues for just about all his digital life. That started about the same time as mine, but again unlike me: he was way more involved in the technical aspects of it.

First a series of Tweets:

Read the rest of this entry »

Posted in ASCII, C++, Development, Encoding, EPS/PostScript, Font, ISO-8859, ISO8859, Power User, Software Development, Times New Roman | Leave a Comment »

MacOS: default PCL printer driver only allows monochrome (black&white/grayscale); default PostScript allows colour

Posted by jpluimers on 2022/05/23

Printing on MacOS can be less Plug&Play than one hopes for.

For default printer drivers on MacOS for the same printer:

  • Postscript allows colour and monochrome (black & white / grayscale)
  • PCL only allows monochrome (black & white / grayscale)

One solution for my OKI MC363 is to use the HP PCL driver and fake it as a HP Colour LaserJet 9500 (which provides a similar amount of memory, and colour duplex A4 printing):

Read the rest of this entry »

Posted in Apple, Development, EPS/PostScript, Hardware, Mac OS X / OS X / MacOS, MC342 printer/scanner, OKI C332, OKI MC363/MC363DNW, OKI Printers, Power User, Printers | Leave a Comment »

binaryfiles – How to convert PDF binary parts into ASCII/ANSI so I can look at it in a text editor? – Stack Overflow

Posted by jpluimers on 2020/06/30

The first hit of pdf binary to text РGoogle Search was [WayBack] binaryfiles РHow to convert PDF binary parts into ASCII/ANSI so I can look at it in a text editor? РStack Overflow has many options including:

Since I have qpdf installed on most systems:

Another useful tool to transform a PDF into an internal format that enables text editor access is¬†qpdf. It is a¬†“command-line program that does structural, content-preserving transformations on PDF files”.

Example usage:

 qpdf                                  \
   --qdf                               \
   --object-streams=disable            \
     input-with-compressed-objects.pdf \
  1. The output of the¬†QDF-mode enforced by the¬†--qdf¬†switch organizes and re-orders the objects neatly. It adds comments to track the original object IDs and page content streams. All object dictionaries are written into a “normalized” standard format for easier parsing.
  2. The¬†--object-streams=disable¬†causes the extraction of (otherwise not recognizable) individual objects that are compressed into another object’s stream data.

The recompress is easy as per [WayBack] QPDF Manual:

qpdf /tmp/uncompressed.pdf /tmp/compressed.pdf

The answer is by [WayBack] User Kurt Pfeifle – Stack Overflow who has many other interesting PDF related answers at:


Posted in Development, EPS/PostScript, PDF, Power User | Leave a Comment »

Some tools useful for analysing PDF documents

Posted by jpluimers on 2020/03/05

A while ago, I wanted to analyse the difference of some PDF documents: why they had suddenly grown to twice their size.

[WayBack] Jeroen Pluimers en Twitter: “dat genereren kun je overigens zien als je dezelfde downloads doet, maar dan een fikse periode uit elkaar.‚Ķ”

There are quite a few tools on [WayBack] Browse Internal PDF Structure РSuper User and [WayBack] Best tool for inspecting PDF files? РStack Overflow, including:

They also made me discover [WayBack] GitHub Рpipwerks/PDFObject: A lightweight JavaScript utility for dynamically embedding PDFs in HTML documents documented at [WayBack] PDFObject: A JavaScript utility for embedding PDFs

This particular case

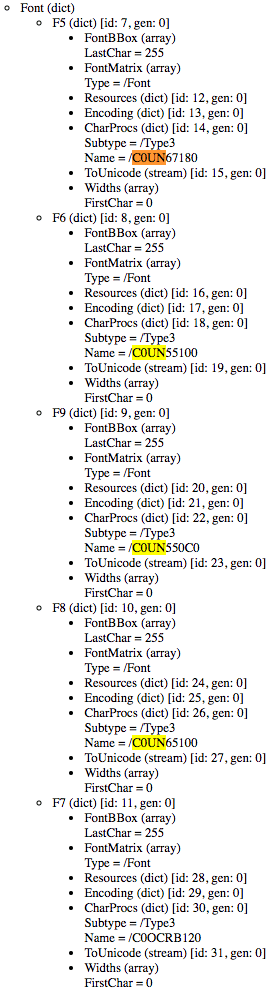

The quickest way to analyse these for me was [WayBack] PDF Object Browser based on [WayBack] GitHub Рbrendandahl/pdf.js.utils: PDF.js Utility Files which is also the foundation of [WayBack] Test PDF Creator.

It runs in your web browser as local JavaScript, so it is pretty OK to load a PDF file into it: it does no “phone home”.

In this case, for generating PDF files with the same content, ABN AMRO added five Type 3 fonts of which one font was not used at all, and two others used to be Type 1 fonts.

Type 1 fonts (wikipedia)

Type 1 (also known as PostScript, PostScript Type 1, PS1, T1or Adobe Type 1) is the font format for single-byte digital fonts for use with Adobe Type Manager software and with PostScript printers. It can support font hinting.

It was originally a proprietary specification, but Adobe released the specification to third-party font manufacturers provided that all Type 1 fonts adhere to it.

Type 1 fonts are natively supported in Mac OS X, and in Windows 2000 and later via the GDI API.[2] (They are not supported in the Windows GDI+, WPF or DirectWrite APIs.)

Type 3 fonts (wikipedia)

Type 3 font (also known as PostScript Type 3 or PS3, T3 or Adobe Type 3) consists of glyphs defined using the full PostScript language, rather than just a subset. Because of this, a Type 3 font can do some things that Type 1 fonts cannot do, such as specify shading, color, and fill patterns. However, it does not support hinting. Adobe Type Manager did not support Type 3 fonts, and they are not supported as native WYSIWYG fonts on any version of Mac OS or Windows.

So far for optimised PDF rendering…

Being in software development for this long, I am constantly reminded that¬†The inmates are running the asylum – Wikipedia. I can definitely recommend reading “The Inmates Are Running the Asylum: Why High Tech Products Drive Us Crazy and How to Restore the Sanity”, by Alan Cooper:


Posted in Development, EPS/PostScript, PDF, Power User, Software Development | Leave a Comment »

√úberPDF printing using a Delphi like canvas

Posted by jpluimers on 2019/11/15

For my link archive, as it has a lot of goodies in the comments, especially on how to avoid bitmaps in PDF emission: [WayBack] We took PDF to a whole new level today Load create, or editing a PDF in 2 lines of code using a simple Delphi (like) Canvas! We added a PDFPrinter and… – Joe C. Hecht – Google+


Posted in Delphi, Development, EPS/PostScript, PDF, Software Development | Leave a Comment »
